HCL Absorption Tower

HCL Absorption Tower
HCL Absorption Tower
Product Code : HCLAT
Product Description

HCL Absorption Tower

HCL absorption columns are used for absorption of Hydrochloric gas which statutorily are not permitted to vent in to the atmosphere, and to produce the HCL acid.

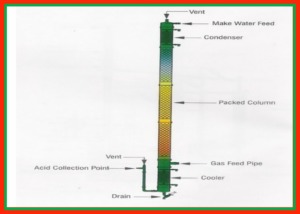

The column is constructed with a series of packed sections, a gas introduction point below that a condenser on the top, and a cooler at the bottom. Make water is sprayed from the top and acid is collected from the bottom.

HCL absorption column are available in 80DN to 300DN diameter (for the gas rate 10 Kgs/hr to 300 Kgs/hr appx.)

CAT.
REF
PACKED
COLUMN
CONDENSER
HTA
GAS
RATE
HCL3 80mmx3m 0.35m2X2 19kg/hr
HCL4 100mmx4m 0.5m2X2 20kg/hr
HCL6 150mmx4m 1.5m2X2 60kg/hr
HCL9 225mmx4.5m 2.5rn2X2 150kg/hr
    HCL12 300mmx4.5       2.5m)X2 300kg/hr
