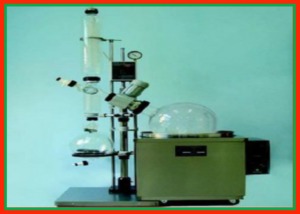

Rotery Film Evaporator

Rotery Film Evaporator
Rotery Film Evaporator
Product Code : RFE
Product Description

Symbolic to all the success that we have gained in the industry remains our status as the prominent names occupied in offering of a qualitative assortment of Rotary Film Evaporator. Our evaporator is widely known by the clients for its superb attributes like consistent performance, excellent operation efficiency and longer service life. Our products are extensively used for the concentration of herbal extracts under high vacuum with specially designed condenser for least solvent loss. We ensure prompt delivery of this Rotary Film Evaporator at minimal market prices.

Rotery Film Evaporator

Rota Evaporator depends on various parameters like temperature differential between bath and contents of flask, RPM, flask capacity and working pressure. An indicative comparison of boil-up of CCI4 rates for 20L, 50L and 100L is given in adjacent figure.

Model MSGI2 MSGI3 MSGI5 MSGI10 MSGI20 MSGI50 MSGI100
Rotating Flask Capacity (ltrs) 2 3 5 10 20 50 100
Rotating Speed (rpm) 0-80 0-80 0-80 0-80 0-80 0-80 0-80
 Electric Motor Rating
(HP)
0.25 0.25 0.25 0.25 0.25 0.5 0.5
 Condenser Cooling Surface Area (m2) 0.10 0.15 0.20 0.20 0.30 0.50 1.0
 Receiver Flask Capacity (ltrs) 1 1 2 5 10 20 20
 Power Supply (Volt/Hz) 230 V,
50 Hz
230 V,
50 Hz
230 V,
50 Hz
230 V,
50 Hz
230 V,
50 Hz
230 V,
50 Hz
230 V,
50 Hz
 Bath Rating (KW) 2 2 2 4 4 6 8
